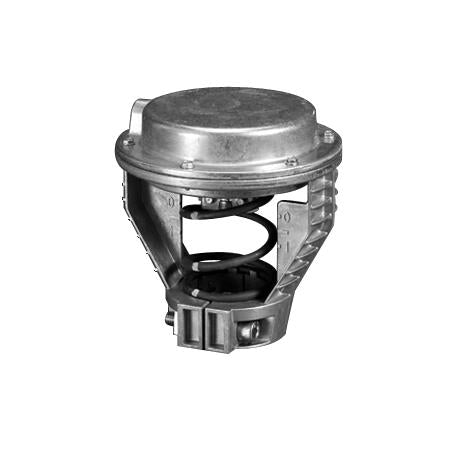

599-01081 Siemens SIE 4"PNEUMATIC ACTUATOR

Additional Product Details

This Flowrite 599 Series 4-inch Pneumatic Valve Actuator is designed for use with Flowrite 599 Series valves in liquid and steam service applications. This valve actuator has a 3/4 inch stroke, a nominal spring range of 3 to 8 psi, a max diaphragm pressure of 35 psi (241 kPa), and a 1/8 inch NPT air connection. Other features of this valve actuator include rugged, all metal housing, visual position indication and a large diaphragm area for control accuracy.

Downloads

A6V10213565_en_1.pdf
